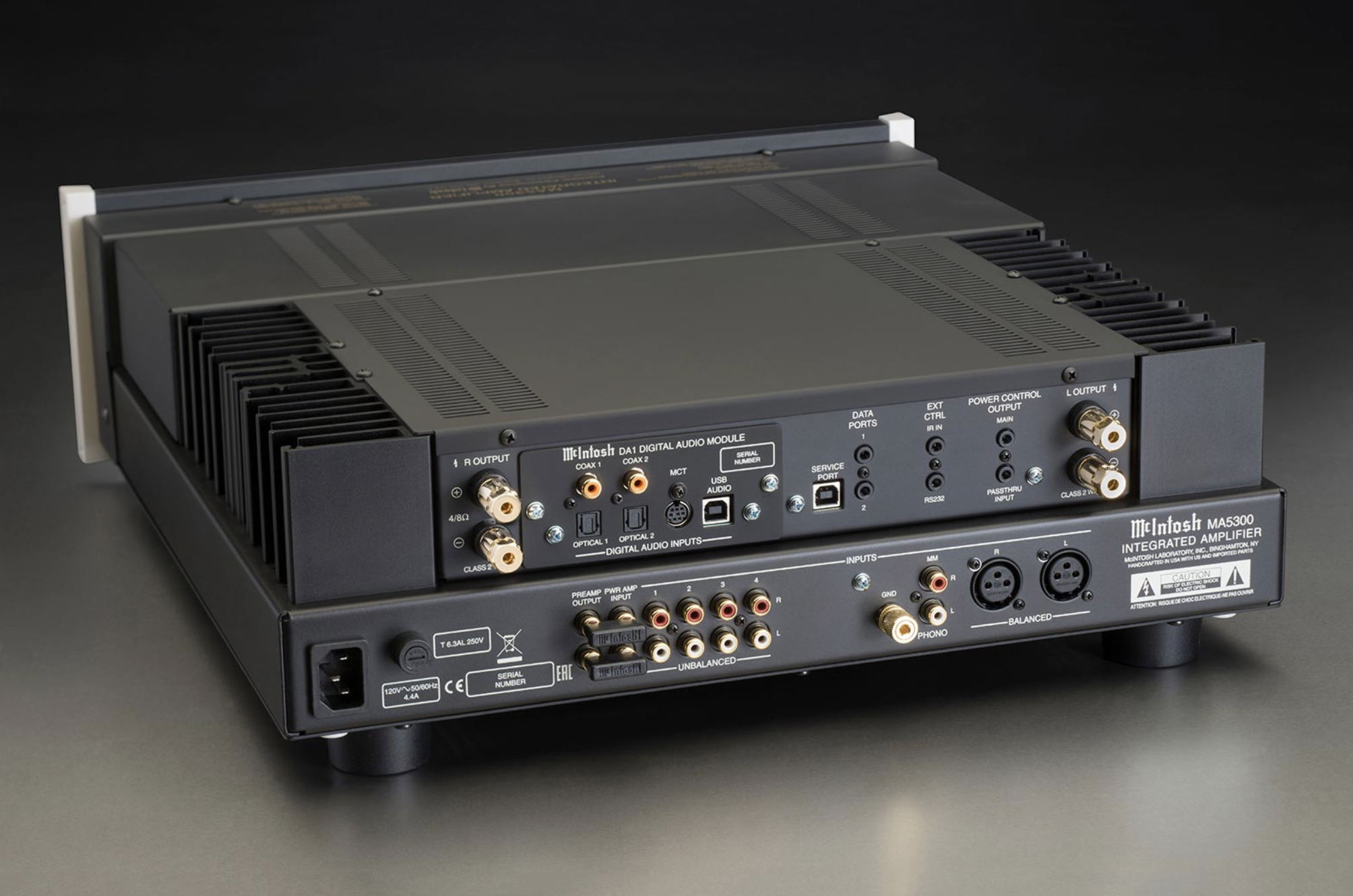

McIntosh, MA5300, Amplificador Integrado
El MA5300 es un amplificador integrado compacto y elegante, ideal para quienes buscan gran calidad de sonido en un espacio reducido. Ofrece hasta 160 W por canal, con entradas para todo tipo de fuentes, desde tocadiscos hasta computadoras o reproductores digitales. Su diseño clásico con medidores azules y panel de vidrio negro refleja el estilo inconfundible de McIntosh, mientras que su sonido claro y potente lo convierte en una excelente opción para disfrutar tu música favorita con la máxima fidelidad.
*Contáctenos para obtener el precio
Description
Especificaciones Técnicas
Electronic Specifications
- FTC Power Output Rating
100 W - Power Output per Channel
100 W into 8 ohms
160 W into 4 ohms - Number of Channels
2 - Rated Power Band
20Hz to 20kHz - Total Harmonic Distortion
0.005% - Dynamic Headroom
1.8dB - Frequency Response +0,-0.5dB
20Hz to 20kHz - Frequency Response, +0, -3dB
10Hz to 100kHz - Sensitivity Phono (Moving Coil)
N/A - Sensitivity Phono (Moving Magnet)
2.5mV - Sensitivity High Level (Balanced / Unbalanced)
0.5V/0.25V - Sensitivity (Power Amp input)
1V - Signal To Noise Ratio (Moving Coil)
N/A - Signal To Noise Ratio (Moving Magnet)
82dB - Signal To Noise Ratio (High Level)
95dB - Signal To Noise Ratio (Power Amp input)
110dB - Input Impedance (Balanced / Unbalanced)
20K/20K - Damping Factor
8 ohms: >200
4 ohms: >100 - Maximum Output (Balanced / Unbalanced)
8V Unbalanced
Connectivity
- Balanced Input
1 - Unbalanced Input
4 - Phono Input Moving Coil
0 - Phono Input Moving Magnet
1 (fixed loading) - Upgradeable Digital Audio Module
Yes: DA1 - Digital Coaxial Input
2 - Digital Optical Input
2 - Digital MCT Input
1 - Digital USB Input
1 - HDMI (ARC) Input
0 - Balanced Variable Output
0 - Unbalanced Fixed Output
0 - Unbalanced Variable Output
1 - Headphone Output
1/4″ High Drive with Headphone Crossfeed Director (HXD®) - Subwoofer Output
0 - AM/FM Tuner option
No - Home Theater PassThru
Yes - Unbalanced Analog Connector Type
Standard - Speaker Binding Post Type
Standard - Service Port
1
Digital Audio Specifications
- Digital-to-Analog Converter (DAC) Type
8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced - Digital Coaxial Input Sample Rate
24-bit/44.1kHz to 192kHz - Digital Optical Input Sample Rate
24-bit/44.1kHz to 192kHz - Digital MCT Input Sample Rate
16-bit/44.1kHz (CD)
DSD64 (SACD) - Digital USB Input Sample Rate
32-bit/44.1kHz to 384kHz (PCM)
DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz
Control
- Tone Controls
Bass and Treble - Tone Bypass and Input Assign
Yes - RS232 Control Input
Yes - Power Control Output
1 Main - Rear Panel Data Port
2 - Rear Panel IR Sensor Input
Yes - Input Level Match
Yes
General Specifications
- Vacuum Tube or Solid State
Solid State - Output Type
Direct Coupled - Output Meters
Yes - Dual Layer Chassis
Yes - Chassis Finish
Black painted steel - McIntosh Monogrammed Heatsinks™
Yes - Power Requirement
120V 50/60Hz, 2.3A - Standby Power Requirement
<0.25 Watts
Weights & Dimensions
- Unit Dimensions (W x H x D)
17-1/2″ (44.45cm) x 6″ (15.2cm) x 18-3/4″ (47.6cm) - Unit Weight
38 lbs (17.2 kg) - Shipping Weight
55.5 lbs (25.2 kg)
