Especificaciones Técnicas

Electronic Specifications

• FTC Power Output Rating
  200 W
• Power Output per Channel
  200 W into 2, 4, or 8 ohms
• Number of Channels
  2
• Rated Power Band
  20Hz to 20kHz
• Total Harmonic Distortion
  0.005%
• Dynamic Headroom
  2dB
• Frequency Response +0,-0.5dB
  20Hz to 20kHz
• Frequency Response, +0, -3dB
  10Hz to 100kHz
• Sensitivity Phono (Moving Coil)
  0.25mV
• Sensitivity Phono (Moving Magnet)
  2.5mV
• Sensitivity High Level (Balanced / Unbalanced)
  0.5V/0.25V
• Sensitivity (Power Amp input)
  1.4V
• Signal To Noise Ratio (Moving Coil)
  80dB
• Signal To Noise Ratio (Moving Magnet)
  82dB
• Signal To Noise Ratio (High Level)
  95dB
• Signal To Noise Ratio (Power Amp input)
  113dB
• Input Impedance (Balanced / Unbalanced)
  20K/20K
• Damping Factor
  >40
• Maximum Output (Balanced / Unbalanced)
  8V Unbalanced

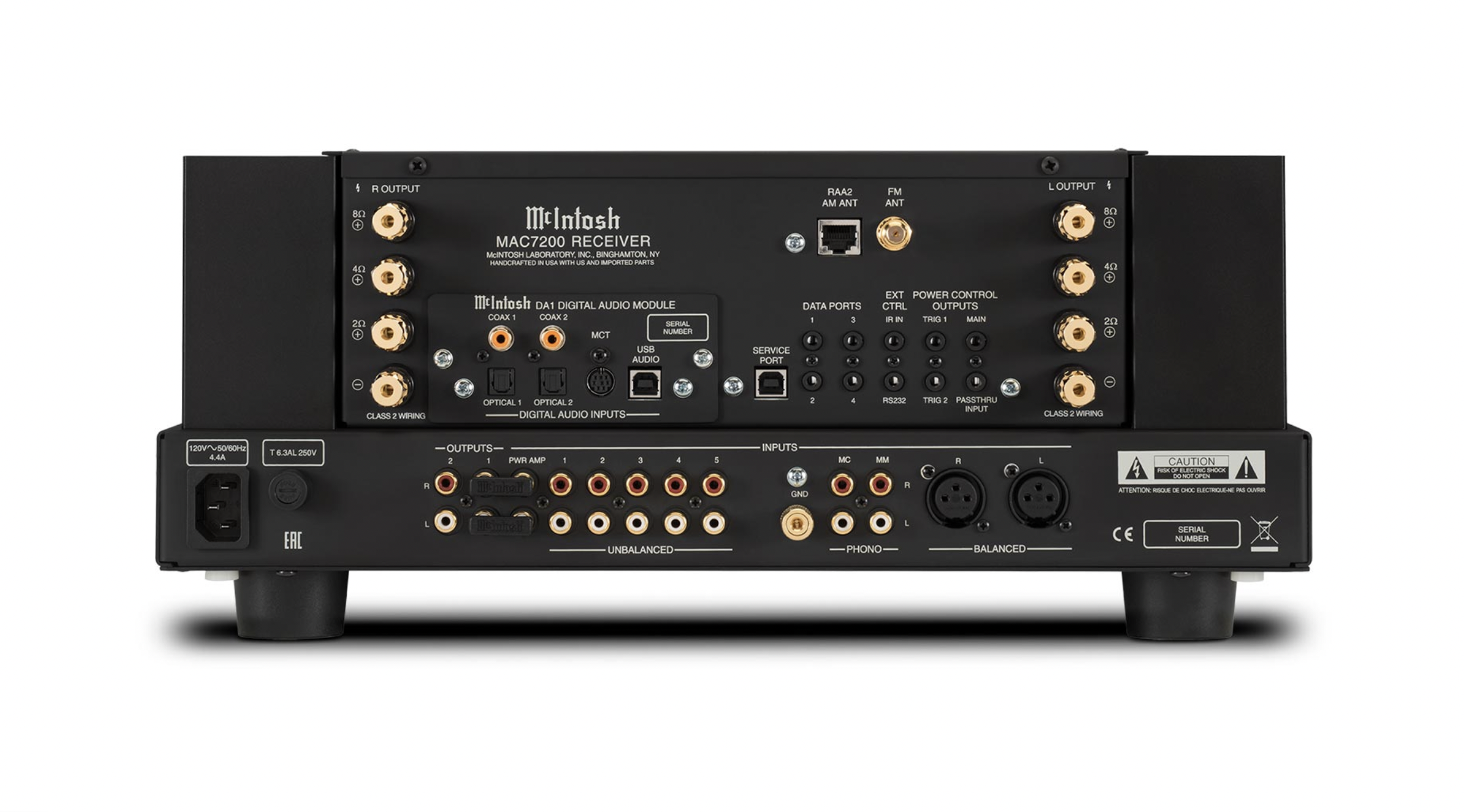

Connectivity

• Balanced Input
  1
• Unbalanced Input
  5
• Phono Input Moving Coil
  1 (adjustable loading)
• Phono Input Moving Magnet
  1 (fixed loading)
• Upgradeable Digital Audio Module
  Yes: DA1
• Digital Coaxial Input
  2
• Digital Optical Input
  2
• Digital MCT Input
  1
• Digital USB Input
  1
• Balanced Variable Output
  0
• Unbalanced Fixed Output
  0
• Unbalanced Variable Output
  2
• Headphone Output
  1/4″ High Drive with Headphone Crossfeed Director (HXD®)
• AM/FM Tuner option
  Included
• Home Theater PassThru
  Yes
• Unbalanced Analog Connector Type
  Standard
• Speaker Binding Post Type
  Standard
• Service Port
  1

Digital Audio Specifications

• Digital-to-Analog Converter (DAC) Type
  8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
• Digital Coaxial Input Sample Rate
  24-bit/44.1kHz to 192kHz
• Digital Optical Input Sample Rate
  24-bit/44.1kHz to 192kHz
• Digital MCT Input Sample Rate
  16-bit/44.1kHz (CD)
  DSD64 (SACD)
• Digital USB Input Sample Rate
  32-bit/44.1kHz to 384kHz (PCM)
  DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

FM Specifications

• Tuning Range
  87.9MHz – 107.9MHz (USA)
  87.5MHz – 108.0MHz (Europe)
  76MHz – 90MHz (Japan)
• Channel Spacing
  200kHz (USA)
  50kHz (Europe50)
  100kHz (Europe100, Japan)
• Antenna Input
  75 ohms, Type “F” Coax connector

FM Analog Specifications

• Useable Sensitivity
  2.2uV (18.1dBf)
• 50dB Quieting Sensitivity
  1.5uV (14.8dBf)
• Signal To Noise Ratio
  Mono: 70dB
  Stereo: 68dB
• Frequency Response
  ±1dB 20Hz to 15,000Hz
• Total Harmonic Distortion
  Mono: 0.4%
  Stereo: 0.8%
• Channel Selectivity
  60dB Adjacent Channel
  66dB Alternate Channel
• Stereo Separation
  38dB

AM Specifications

• Tuning Range
  530kHz – 1720kHz (USA)
  522kHz – 1602kHz (Europe)
  522kHz – 1611kHz (Japan)
• Channel Spacing
  10kHz (USA)
  9kHz (Europe, Japan)
• Antenna Input
  Balanced, RJ45 connector (for use only with supplied McIntosh RAA2 Remote AM Antenna)

AM Analog Specifications

• Selectivity
  45dB Adjacent Channel
• Signal To Noise Ratio
  50dB
• Frequency Response
  0dB, -6dB 50Hz to 3,000Hz
• Total Harmonic Distortion
  0.5%
• Sensitivity
  350uV/m

Control

• Tone Controls
  Bass and Treble
• Tone Bypass and Input Assign
  Yes
• RS232 Control Input
  Yes
• Power Control Output
  1 Main, 2 Trigger
• Rear Panel Data Port
  4
• Rear Panel IR Sensor Input
  Yes
• Input Level Match
  Yes

General Specifications

• Vacuum Tube or Solid State
  Solid State
• Output Type
  Autoformer™
• Output Meters
  Yes
• Dual Layer Chassis
  Yes
• Chassis Finish
  Black painted steel
• McIntosh Monogrammed Heatsinks™
  Yes
• Power Requirement
  120V 50/60Hz, 4.4 amps
• Standby Power Requirement
  <0.25 Watts

Weights & Dimensions

• Unit Dimensions (W x H x D)
  17-1/2″ (44.5cm) x 7-5/8″ (19.4cm) x 18-3/4″ (47.6cm)
• Unit Weight
  75 lbs (34.1 kg)
• Shipping Weight
  93 lbs (42.3 kg)
