McIntosh MSA5500, Amplificador Integrado Streamer, reproductor de red, audio high end Costa Rica

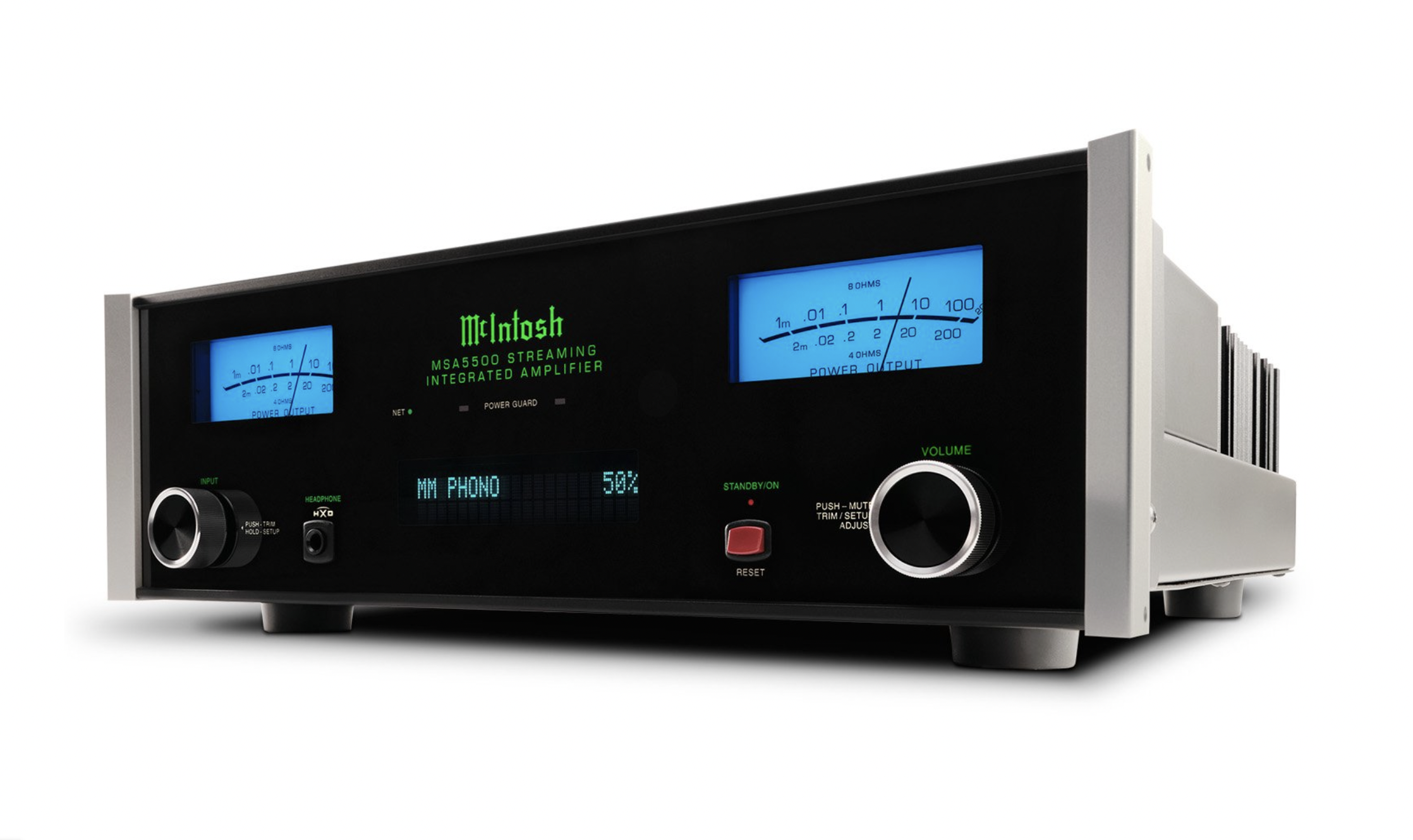

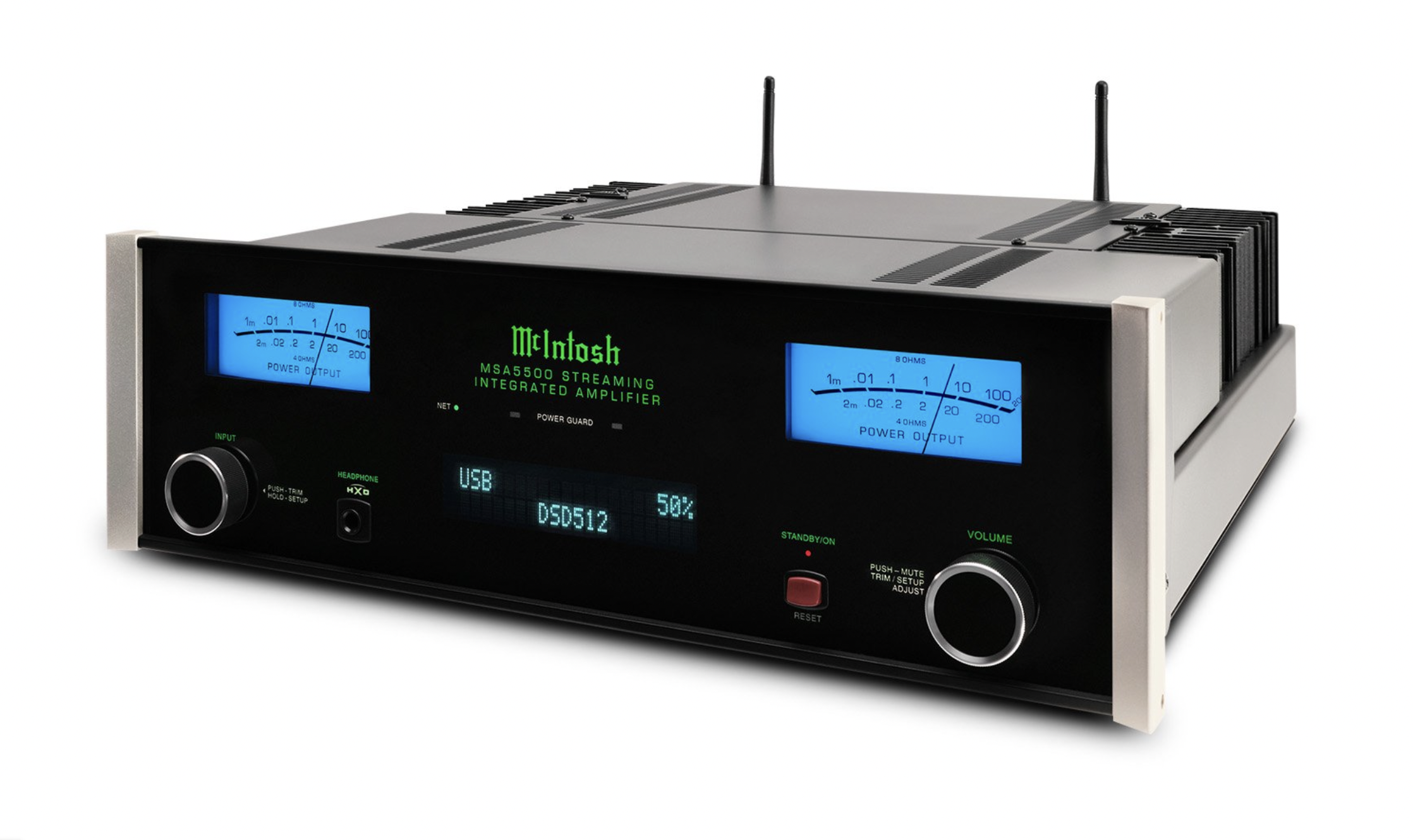

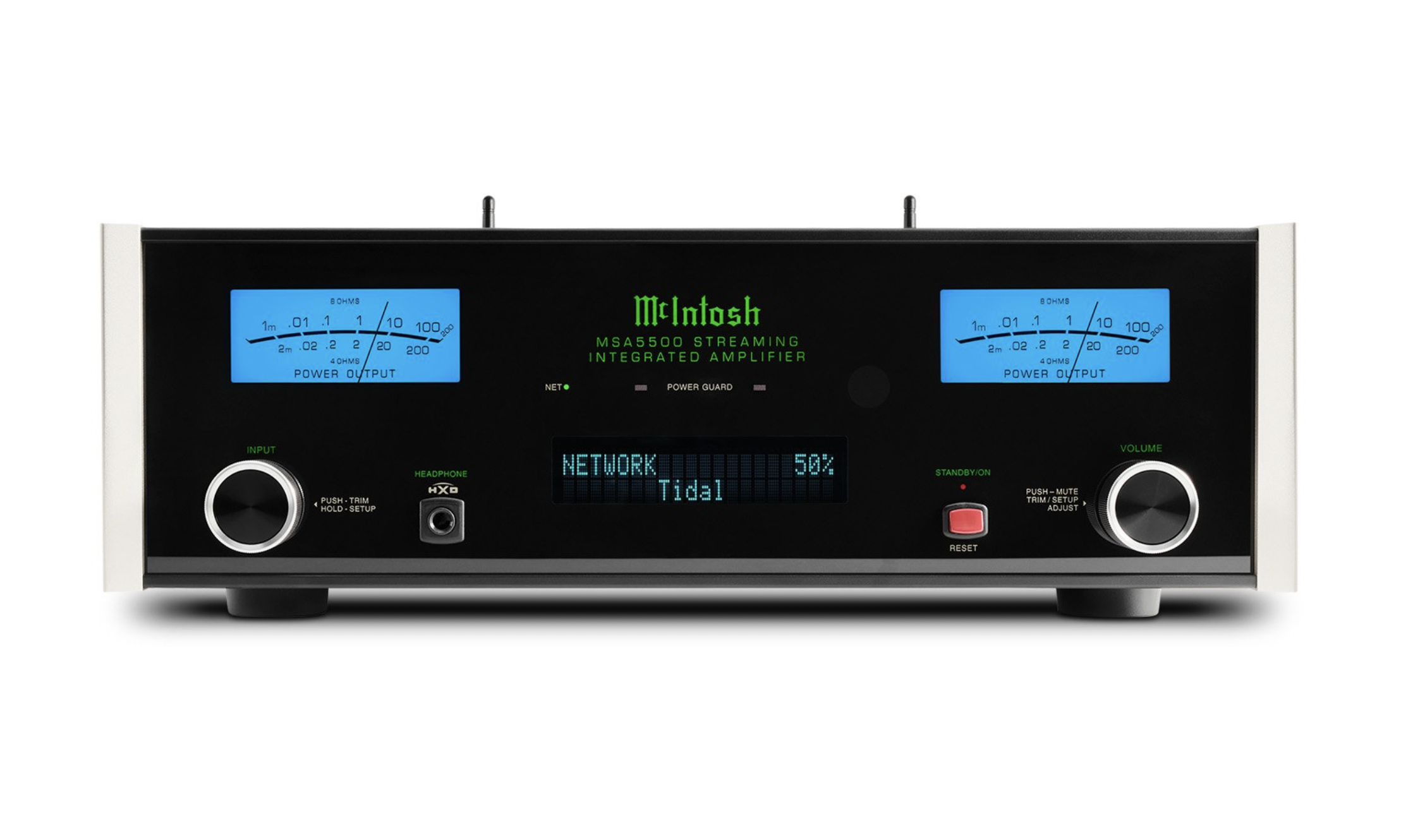

McIntosh, MSA5500, Amplificador Integrado + Streamer

El McIntosh MSA5500 es un amplificador integrado compacto y elegante que ofrece un sonido potente y claro, ideal para espacios pequeños. Con 100 W por canal, permite conectarse fácilmente a un televisor, tocadiscos y servicios de música en streaming como Apple AirPlay, Spotify y TIDAL. Su diseño moderno y funcional combina tecnología avanzada con la calidad y estilo clásico de McIntosh.

*Contáctenos para obtener el precio



Categories: , Tags: , , , ,

Description

Especificaciones Técnicas

Electronic Specifications

  • FTC Power Output Rating
    100 W
  • Power Output per Channel
    100 W into 8 ohms
    160 W into 4 ohms
  • Number of Channels
    2
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Dynamic Headroom
    1.8dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    N/A
  • Sensitivity Phono (Moving Magnet)
    2.5mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.5V/0.25V
  • Sensitivity (Power Amp input)
    1V
  • Signal To Noise Ratio (Moving Coil)
    N/A
  • Signal To Noise Ratio (Moving Magnet)
    82dB
  • Signal To Noise Ratio (High Level)
    95dB
  • Signal To Noise Ratio (Power Amp input)
    110dB
  • Input Impedance (Balanced / Unbalanced)
    20K/20K
  • Damping Factor
    8 ohms: >200
    4 ohms: >100
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced

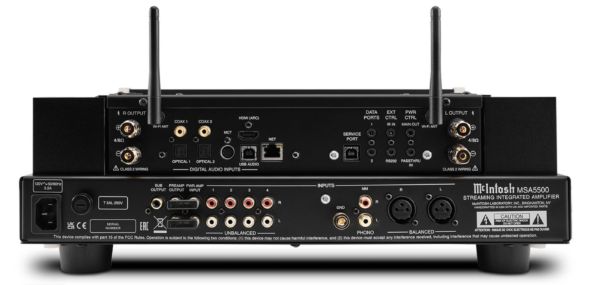

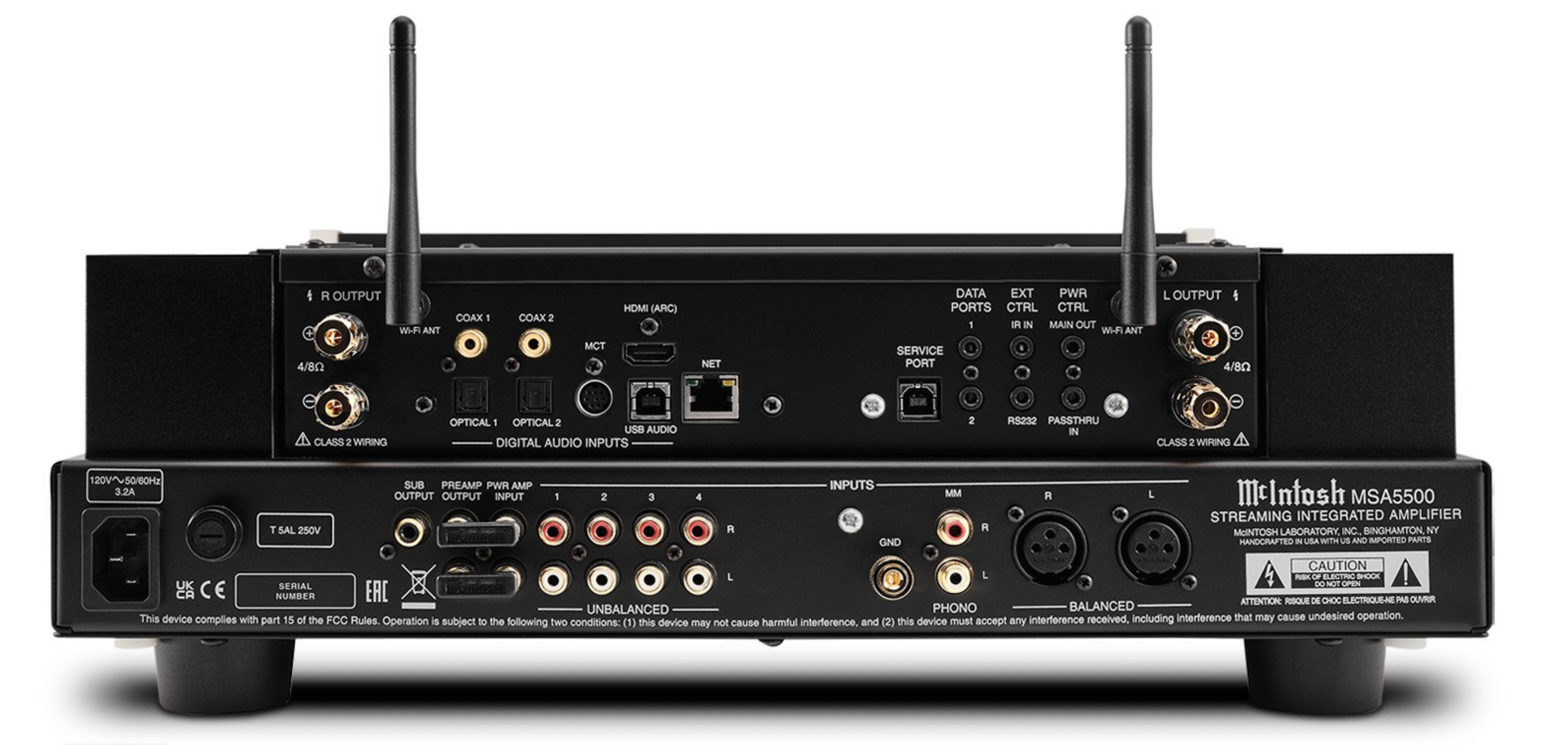

Connectivity

  • Balanced Input
    1
  • Unbalanced Input
    4
  • Phono Input Moving Coil
    0
  • Phono Input Moving Magnet
    1 (fixed loading)
  • Upgradeable Digital Audio Module
    No
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT Input
    1
  • Digital USB Input
    1
  • HDMI (ARC) Input
    1
  • Balanced Variable Output
    0
  • Unbalanced Fixed Output
    0
  • Unbalanced Variable Output
    1
  • Headphone Output
    1/4″ High Drive with Headphone Crossfeed Director (HXD®)
  • Subwoofer Output
    1
  • AM/FM Tuner option
    No
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Standard
  • Speaker Binding Post Type
    Standard
  • Service Port
    1

Digital Audio Specifications

  • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital Optical Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital MCT Input Sample Rate
    16-bit/44.1kHz (CD)
    DSD64 (SACD)
  • Digital USB Input Sample Rate
    32-bit/44.1kHz to 384kHz (PCM)
    DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

Control

  • Tone Controls
    Bass and Treble
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main
  • Rear Panel Data Port
    2
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

General Specifications

  • Vacuum Tube or Solid State
    Solid State
  • Output Type
    Direct Coupled
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Black painted steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirement
    100 Volts, 50/60Hz at 3.7 amps
    110 Volts, 50/60Hz at 3.4 amps
    120 Volts, 50/60Hz at 3.2 amps
    220 Volts, 50/60Hz at 1.8 amps
    230 Volts, 50/60Hz at 1.6 amps
    240 Volts, 50/60Hz at 1.6 amps
  • Standby Power Requirement
    <0.25 Watts

Weights & Dimensions

  • Unit Dimensions (W x H x D)
    17-1/2″ (44.45cm) x 6″ (15.2cm) (8-1/8” (20.6cm) with vertical antenna) x 18-3/4” (47.6cm) with vertical antenna (22-1/4″ (56.5cm) with horizontal antenna)
  • Unit Weight
    38 lbs (17.2 kg)
  • Shipping Weight
    55.5 lbs (25.2 kg)

Click aquí para más información del producto.
